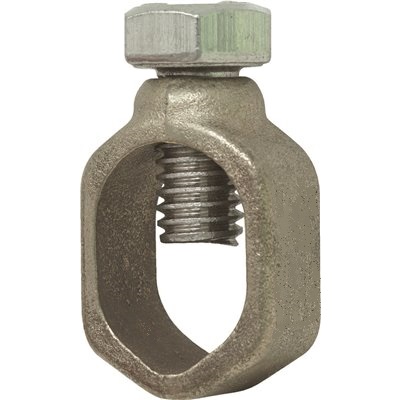

One piece bodies. Hot dip galvanized.
1/2" square-head cup point set screw is hot dip galvanized.
| Catalog No. | Nominal Rod Dia. |
Wire Diameter | Wire Range | Dimensions | Approx. Ship Wt. per Each | ||||||||||||||||||||
| Socket Set Screw |
Hex Head Bolt |
inch | mm | Minimum | Maximum | Max | Min | Max mm2 |
Min mm2 |
A (Max) Socket Screw |
A (Max) Hex Bolt |
Screw Thrd Size UNC-2A |
B | C | D | ||||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | lbs | kg | ||||||||
| CGRC12 | 1/2 | 12.7 | 2 str | 8 sol | 33.6 | 8.3 | 1-13/64 | 30.56 | 1-13/16 | 46.04 | 7/16-14 | 366.71 | 27/32 | 21.43 | 15/16 | 23.81 | 19/32 | 15.08 | |||||||
| CGRC58 | 5/8 | 15.8 | 0.128 | 3 | 0.460 | 12 | 2 str | 8 sol | 53.6 | 8.3 | 1-51/64 | 45.64 | 2-7/32 | 56.36 | 7/16-14 | 366.71 | 61/64 | 24.21 | 15/16 | 23.81 | 21/32 | 16.67 | 0.34 | 0.15 | |
| CGRC34 | 3/4 | 19 | 0.36 | 0.15 | |||||||||||||||||||||
