STANDARDS
National : CSA C22.2 N° 2556; CSA C22.2 N° 51
DESCRIPTION
CSA File #LL23462 Class 5811 01

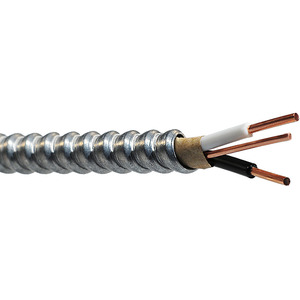

Solid copper circuit conductors, with low temperature EXELENE® cross-linked polyethylene insulation (RW90 XLPE), with two additional solid copper bonding conductors (one bare, one covered with green EXELENE®, (RW90 XLPE). Twisted assembly paper wrapped and covered with interlocked aluminum tape armour. Rated 600 volts. LEAD FREE and RoHS compliant.
Limited Smoke Zero Halogen - CSA rated ST1 per CSA 22.2 No. 2556
APPLICATION
For open and concealed wiring in dry locations only.
This cable is recommended for installations where an isolated ground is required (i.e. computer and other electronic equipment or special installations).
Minimum recommended installation temperature minus 40°C (with suitable handling procedures).
Maximum conductor temperature 90°C.
Characteristics
| ELECTRICAL CHARACTERISTICS | |||
| Maximum operating voltage | 600V | ||
| USAGE CHARACTERISTICS | |||
| Maximum operating temperature | 90°C | ||
| Catalog Number |
Size AWG | No. Of Conductors# | Insulation Thickness | Isolated Ground Conductor AWG** | Bare Bonding Conductor AWG | Approximate Diameter | Approximate Net Cable Weight | Ampacity (amps) 30°C Ambient | ||||
| mm | in | |||||||||||
| mm | in | kg/km | lbs/kft | |||||||||
| 14 (1) | 2 | 0.76 | 0.03 | 14 (1) | 14 (1) | 12.5 | 0.491 | 169 | 114 | 15 | ||
| 14 (1) | 3 | 0.76 | 0.03 | 14 (1) | 14 (1) | 13.4 | 0.528 | 200 | 135 | 15 | ||
| 12 (1)† | 2 | 0.76 | 0.03 | 12 (1) | 14 (1) | 13.4 | 0.527 | 205 | 137 | 20 | ||
| 12 (1)† | 2 | 0.76 | 0.03 | 12 (1) | 12 (1) | 13.5 | 0.531 | 224 | 150 | 20 | ||
| 12 (1) | 3 | 0.76 | 0.03 | 14 (1) | 14 (1) | 14.1 | 0.554 | 242 | 162 | 20 | ||
| 12 (1)† | 3 | 0.76 | 0.03 | 12 (1) | 12 (1) | 14.6 | 0.573 | 268 | 180 | 20 | ||
| 10 (1)† | 2 | 0.76 | 0.03 | 12 (1) | 12 (1) | 14.1 | 0.557 | 267 | 179 | 30 | ||
| 10 (1)† | 2 | 0.76 | 0.03 | 10 (1) | 12 (1) | 14.4 | 0.566 | 277 | 186 | 30 | ||
| 10 (1)† | 2 | 0.76 | 0.03 | 10 (1) | 10 (1) | 14.7 | 0.58 | 307 | 207 | 30 | ||
| 10 (1)† | 3 | 0.76 | 0.03 | 12 (1) | 12 (1) | 15.4 | 0.606 | 331 | 223 | 30 | ||
| 10 (1)† | 3 | 0.76 | 0.03 | 10 (1) | 10 (1) | 16 | 0.63 | 372 | 250 | 30 | ||
