BBF2STC - Bronze Bolted Stud Connector - (1-3 Cables)

Category: Stud Connectors b
Hits: 354

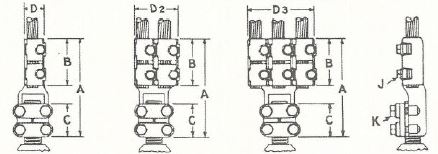

STUD CONNECTORS FOR ONE, TWO OR THREE CABLES

Bolted bronze


Material: Copper alloy 131H


Bolts: High strength SI Bronze


For tin plating add Suffix "TP"

1. All cables sizes shown are stranded, 350 and above are kcmil sizes
2. Other sizes available on request
3. k=1/2"

BRONZE CONNECTORS
  CABLE SIZE1   A B C D D2 D3 J
Cat. No. Min. Max. Stud size mm In mm In mm In mm In mm In mm In mm In
BBF2ST34TH16C00 BBF2D0ST34TH16C00 BBF2T0ST34TH16C00 1/0 2/0 3/4-16 122 4 13/16 54 2  1/8 51 2      24  15/16 51 2      76 3      8   5/16
BBF3ST34TH16C0000 BBF2D0ST34TH16C0000 BBF2T0ST34TH16C0000 2/0 4/0 3/4-16 132 5  3/16 62 2  7/16 51 2      27 1  1/16 56 2  3/16 83 3  1/4 8   5/16
BBF4ST34TH16C350 BBF2D0ST34TH16C350 BBF2T0ST34TH16C350 4/0 350 3/4-16 140 5  1/2 70 2 3/4 51 2 32 1 1/4 67 2 5/8 100 3 15/16 10   3/8
BBF5ST34TH16C500 BBF2D0ST34TH16C500 BBF2T0ST34TH16C500 350 500 3/4-16 152 6      83 3 1/4 51 2 37 1  7/16 76 3 114 4 1/2 10   3/8
BBF6ST1TH14C00 BBF2D0ST1TH14C00 BBF2T0ST1TH14C00 1/0 2/0 1-14 129 5  1/16 54 2 1/8 56 2  3/16 24  15/16 51 2 76 3 8   5/16
BBF7ST1TH14C0000 BBF2D0ST1TH14C0000 BBF2T0ST1TH14C0000 2/0 4/0 1-14 138 5  7/16 62 2  7/16 56 2  3/16 27 1  1/16 56 2  3/16 83 3 1/4 8   5/16
BBF8ST1TH14C350 BBF2D0ST1TH14C350 BBF2T0ST1TH14C350 4/0 350 1-14 146 5  3/4 70 2 3/4 56 2  3/16 32 1 1/4 67 2 5/8 100 3 15/16 10   3/8
BBF9ST1TH14C500 BBF2D0ST1TH14C500 BBF2T0ST1TH14C500 350 500 1-14 159 6  1/4 83 3 1/4 56 2  3/16 37 1  7/16 76 3 114 4 1/2 10   3/8
BBF10ST1TH14C750 BBF2D0ST1TH14C750 BBF2T0ST1TH14C750 500 750 1-14 173 6 13/16 95 3 3/4 56 2  3/16 43 1 11/16 87 3  7/16 130 5 1/8 11   7/16
BBF11ST1TH14C1000 BBF2D0ST1TH14C1000 BBF2T0ST1TH14C1000 750 1000 1-14 191 7  1/2 113 4  7/16 56 2  3/16 49 1 15/16 102 4 152 6 13   1/2
BBF12ST118TH12C0000 BBF2D0ST118TH12C0000 BBF2T0ST118TH12C0000 2/0 4/0 1 1/8-12 138 5  7/16 62 2  7/16 56 2  3/16 30 1 1/6 56 2  3/16 83 3 1/4 8   5/16
BBF13ST118TH12C350 BBF2D0ST118TH12C350 BBF2T0ST118TH12C350 4/0 350 1 1/8-12 146 5  3/4 70 2 3/4 56 2  3/16 32 1 1/4 67 2 5/8 100 3 15/16 10   3/8
BBF14ST118TH12C500 BBF2D0ST118TH12C500 BBF2T0ST118TH12C500 350 500 1 1/8-12 159 6  1/4 83 3 1/4 56 2  3/16 37 1  7/16 76 3 114 4 1/2 10   3/8
BBF15ST118TH12C750 BBF2D0ST118TH12C750 BBF2T0ST118TH12C750 500 750 1 1/8-12 173 6 13/16 95 3 3/4 56 2  3/16 43 1 11/16 87 3  7/16 130 5 1/8 11   7/16
BBF16ST118TH12C100 BBF2D0ST118TH12C100 BBF2T0ST118TH12C100 750 100 1 1/8-12 191 7  1/2 113 4  7/16 56 2  3/16 49 1 15/16 102 4 152 6 13   1/2
BBF17ST114TH12C0000 BBF2D0ST114TH12C0000 BBF2T0ST114TH12C0000 2/0 4/0 1 1/4-12 151 5 15/16 62 2  7/16 60 2 3/8 27 1  1/16 56 2  3/16 83 3 1/4 8   5/16
BBF18ST114TH12C350 BBF2D0ST114TH12C350 BBF2T0ST114TH12C350 4/0 350 1 1/4-12 159 6  1/4 70 2 3/4 60 2 3/8 32 1 1/4 67 2 5/8 100 3 15/16 10   3/8
BBF19ST114TH12C500 BBF2D0ST114TH12C500 BBF2T0ST114TH12C500 350 500 1 1/4-12 171 6  3/4 83 3 1/4 60 2 3/8 37 1  7/16 76 3 114 4 1/2 10   3/8
BBF20ST114TH12C750 BBF2D0ST114TH12C750 BBF2T0ST114TH12C750 500 750 1 1/4-12 186 7  5/16 95 3 3/4 60 2 3/8 43 1 11/16 87 3  7/16 130 5 1/8 11   7/16
BBF21ST114TH12C1000 BBF2D0ST114TH12C1000 BBF2T0ST114TH12C1000 750 1000 1 1/4-12 203 8      113 4  7/16 60 2 3/8 49 1 15/16 102 4 152 6 13   1/2
BBF22ST112TH12C350 BBF2D0ST112TH12C350 BBF2T0ST112TH12C350 4/0 350 1 1/2-12 159 6  1/4 70 2 3/4 60 2 3/8 32 1 1/4 67 2 5/8 100 3 15/16 10   3/8
BBF23ST112TH12C500 BBF2D0ST112TH12C500 BBF2T0ST112TH12C500 350 500 1 1/2-12 171 6  3/4 83 3 1/4 60 2 3/8 37 1  7/16 76 3 114 4 1/2 10   3/8
BBF24ST112TH12C750 BBF2D0ST112TH12C750 BBF2T0ST112TH12C750 500 750 1 1/2-12 186 7  5/16 95 3 3/4 60 2 3/8 43 1 11/16 87 3  7/16 130 5 1/8 11   7/16
BBF25ST112TH12C1000 BBF2D0ST112TH12C1000 BBF2T0ST112TH12C1000 750 1000 1 1/2-12 203 8      113 4  7/16 60 2 3/8 49 1 15/16 102 4 152 6 13   1/2
