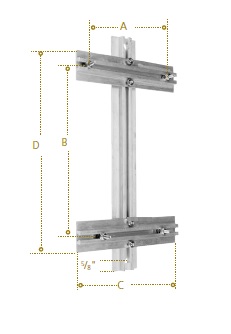

Catalog Number | MountingStud Spacing | Overall Width - C | Overall Height - D | Mounting Hole Spacing - E | Mounting Holes | Approx. Ship Wt. per Each | ||||||||
Width - A | Height - B | |||||||||||||
inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | lbs | kg | |
CMS7141208 | 1" to 7-1/4" | 25 to 184 | 2" to 12" | 51 to 305 | 8" | 203 | 16 3/8" | 416 | 15-1/8" | 384 | Two 9/16" | Two 14 | 2,25 | 1,02 |
CMS11141812 | 1" to 11-1/4' | 25 to 286 | 2" to 18" | 51 to 457 | 12" | 305 | 22 3/8" | 568 | 21-1/8" | 537 | Two 9/16" | Two 14 | 3 | 1,36 |
CMS15142416 | 1" to 15-1/4" | 25 to 387 | 2" to 24" | 51 to 610 | 16" | 406 | 28 3/8" | 721 | 27-1/8" | 689 | Two 9/16" | Two 14 | 3,75 | 1,7 |
CMS17143018 | 1" to 17-1/4" | 25 to 438 | 2" to 30" | 51 to 762 | 18" | 457 | 34 3/8" | 873 | 33-1/8" | 841 | Two 9/16" | Two 14 | 4,25 | 1,93 |
