TEE CONNECTOR, TUBE TO CABLE
Notes

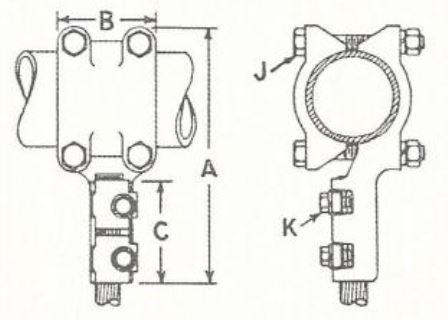

1. All cables sizes shown are stranded, 350 and above are kcmil sizes
2. Other sizes available on request
3. J= 1/2"
Cat. No. | TAP CABLE SIZE1 | RUN | A | B | C | K | |
Min. | Max. | I.P.S | In | In | In | In | |
BB2TB12C1 | #4 | #1 | 1/2 | 4 11/16 | 2 1/4 | 1 11/16 | 5/16 |
BB2TB12C00 | 1/0 | 2/0 | 1/2 | 5 1/8 | 2 1/4 | 2 1/8 | 5/16 |
BB2TB12C0000 | 2/0 | 4/0 | 1/2 | 5 7/16 | 2 1/4 | 2 7/16 | 5/16 |
BB2TB12C350 | 4/0 | 350 | 1/2 | 5 3/4 | 2 1/4 | 2 3/4 | 3/8 |
BB2TB34C1 | #4 | #1 | 3/4 | 4 13/16 | 2 3/8 | 1 11/16 | 5/16 |
BB2TB34C00 | 1/0 | 2/0 | 3/4 | 5 1/4 | 2 3/8 | 2 1/8 | 5/16 |
BB2TB34C0000 | 2/0 | 4/0 | 3/4 | 5 9/16 | 2 3/8 | 2 7/16 | 5/16 |
BB2TB34C350 | 4/0 | 350 | 3/4 | 5 7/8 | 2 3/8 | 2 3/4 | 3/8 |
BB2TB34C500 | 350 | 500 | 3/4 | 6 3/8 | 2 3/8 | 3 1/4 | 3/8 |
BB2TB34C750 | 500 | 750 | 3/4 | 6 7/8 | 2 3/8 | 3 3/4 | 7/16 |
BB2TB1C00 | 1/0 | 2/0 | 1 | 5 9/16 | 2 1/2 | 2 1/8 | 5/16 |
BB2TB1C0000 | 2/0 | 4/0 | 1 | 5 7/8 | 2 1/2 | 2 7/16 | 5/16 |
BB2TB1C350 | 4/0 | 350 | 1 | 6 3/16 | 2 1/2 | 2 3/4 | 3/8 |
BB2TB1C500 | 350 | 500 | 1 | 6 11/16 | 2 1/2 | 3 1/4 | 3/8 |
BB2TB1C750 | 500 | 750 | 1 | 7 3/16 | 2 1/2 | 3 3/4 | 7/16 |
BB2TB1C1000 | 750 | 1000 | 1 | 7 7/8 | 2 1/2 | 4 7/16 | 1/2 |
BB2TB114C0000 | 2/0 | 4/0 | 1 1/4 | 6 1/4 | 2 5/8 | 2 7/16 | 5/16 |
BB2TB114C350 | 4/0 | 350 | 1 1/4 | 6 9/16 | 2 5/8 | 2 3/4 | 3/8 |
BB2TB114C500 | 350 | 500 | 1 1/4 | 7 1/16 | 2 5/8 | 3 1/4 | 3/8 |
BB2TB114C750 | 500 | 750 | 1 1/4 | 7 9/16 | 2 5/8 | 3 3/4 | 7/16 |
BB2TB114C1000 | 750 | 1000 | 1 1/4 | 8 1/4 | 2 5/8 | 4 7/16 | 1/2 |
BB2TB112C0000 | 2/0 | 2/0 | 1 1/2 | 6 7/16 | 2 3/4 | 2 7/16 | 1/2 |
BB2TB112C350 | 4/0 | 350 | 1 1/2 | 6 3/4 | 2 3/4 | 2 3/4 | 3/8 |
BB2TB112C500 | 350 | 500 | 1 1/2 | 7 1/4 | 2 3/4 | 3 1/4 | 3/8 |
BB2TB112C750 | 500 | 750 | 1 1/2 | 7 3/4 | 2 3/4 | 3 3/4 | 7/16 |
BB2TB112C1000 | 750 | 1000 | 1 1/2 | 8 7/16 | 2 3/4 | 4 7/16 | 1/2 |
BB2TB2C0000 | 2/0 | 4/0 | 2 | 7 1/16 | 2 7/8 | 2 7/16 | 5/16 |
BB2TB2C350 | 4/0 | 350 | 2 | 7 3/8 | 2 7/8 | 2 3/4 | 3/8 |
BB2TB2C500 | 350 | 500 | 2 | 7 7/8 | 2 7/8 | 3 1/4 | 3/8 |
BB2TB2C750 | 500 | 750 | 2 | 8 3/8 | 2 7/8 | 3 3/4 | 7/16 |
BB2TB2C1000 | 750 | 1000 | 2 | 9 1/16 | 2 7/8 | 4 7/16 | 1/2 |
BB2TB212C0000 | 2/0 | 4/0 | 2 1/2 | 7 9/16 | 3 | 2 7/16 | 5/16 |
BB2TB212C350 | 4/0 | 350 | 2 1/2 | 7 7/8 | 3 | 2 3/4 | 3/8 |
BB2TB212C500 | 350 | 500 | 2 1/2 | 8 3/8 | 3 | 3 1/4 | 3/8 |
BB2TB212C750 | 500 | 750 | 2 1/2 | 8 7/8 | 3 | 3 3/4 | 7/16 |
BB2TB212C1000 | 750 | 1000 | 2 1/2 | 9 9/16 | 3 | 4 7/16 | 1/2 |
BB2TB3C0000 | 2/0 | 4/0 | 3 | 7 13/16 | 3 | 2 7/16 | 5/16 |
BB2TB3C350 | 4/0 | 350 | 3 | 8 1/8 | 3 | 2 3/4 | 3/8 |
BB2TB3C500 | 350 | 500 | 3 | 8 5/8 | 3 | 3 1/4 | 3/8 |
BB2TB3C750 | 500 | 750 | 3 | 9 1/8 | 3 | 3 3/4 | 7/16 |
BB2TB3C1000 | 750 | 1000 | 3 | 9 13/16 | 3 | 4 7/16 | 1/2 |
