For Tinned surface add prefix "T"

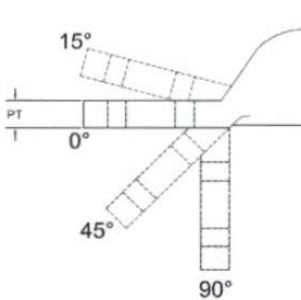

For pad Angle, add suffix "L" with angle, ex L90 = 90 degree pad

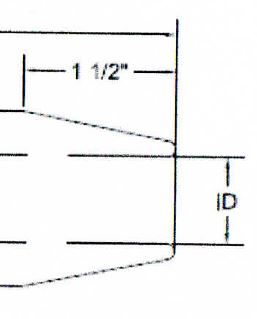

For EHV RATED (corona free up to 500kV) add suffix "EHV"
PN2 = 1.75" wide 2 hole nema pad
P3N4 = 3" wide 4 hole nema pad
P4N4 = 4" wide 4 hole nema pad
Material: 1060 ALUMINUM ROD
| CATALOG NUMBER |

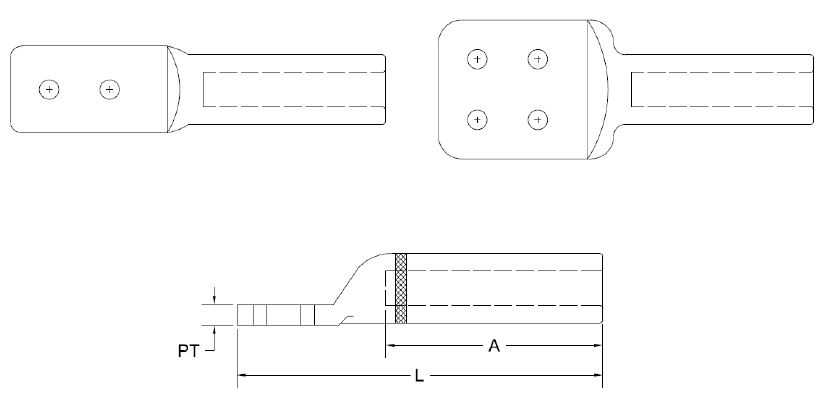

CONDUCTOR RANGE | DIE REF. | DIMENSIONS IN INCHES | |||
| AAC | ACSR | L | A | PT | ||
| ACC2PN2 | #2 (7) | #2 (6/1) | 0.640 | 6.000 | 2.000 | 0.250 |
| ACC0PN2 | 1/0 (7), (19) | - | 0.840 | 7.500 | 2.000 | 0.310 |
| ACC0RPN2 | - | 1/0 (6/1) | 0.840 | 7.500 | 2.000 | 0.310 |
| ACC00PN2 | 2/0 (7), (19) | - | 0.840 | 7.500 | 2.000 | 0.310 |
| ACC00RPN2 | - | 2/0 (6/1) | 0.840 | 7.500 | 2.000 | 0.310 |
| ACC000PN2 | 3/0 (7), (19) | - | 0.840 | 7.500 | 2.000 | 0.310 |
| ACC0000PN2 | 4/0 (7), (19) | 3/0 (6/1) | 0.840 | 7.500 | 2.000 | 0.310 |
| ACC0000P3N4 | 0.840 | 7.500 | 2.000 | 0.310 | ||
| ACC0000RPN2 | - | 4/0 (6/1) | 0.840 | 7.500 | 2.000 | 0.310 |
| ACC0000RP3N4 | 0.840 | 7.500 | 2.000 | 0.310 | ||
| ACC266PN2 | 266.8 (7), (19) | - | 1.125 | 7.500 | 3.750 | 0.380 |
| ACC266P3N4 | 1.125 | 7.500 | 3.750 | 0.310 | ||
| ACC300PN2 | 300 (7), (19) | 266.8 (18/1) | 1.125 | 7.500 | 3.750 | 0.380 |
| ACC300P3N4 | 1.312 | 7.500 | 3.750 | 0.310 | ||
| ACC266RPN2 | - | 266.8 (26/7) 300 (18/1) |
1.125 | 7.500 | 3.750 | 0.380 |
| ACC300RP3N4 | 1.312 | 7.500 | 3.750 | 0.310 | ||
| ACC336PN2 | 336.4 (19), (37) | 336.4 (36/1) | 1.125 | 8.500 | 3.750 | 0.380 |
| ACC336P3N4 | 1.312 | 8.500 | 3.750 | 0.310 | ||
| ACC350PN2 | 350 (19), (37) | 300 (26/7) 336.4 (18/1) |
1.125 | 8.500 | 3.750 | 0.380 |
| ACC350P3N4 | 1.312 | 8.500 | 3.750 | 0.310 | ||
| ACC397PN2 | 397.5 (19) 400 (19), (37) |
336.4 (30/7), (26/7) 397.5 (18/1), (36/1) |
1.125 | 8.500 | 3.750 | 0.380 |
| ACC400P3N4 | 1.312 | 8.500 | 3.750 | 0.310 | ||
| ACC477PN2 | 477 (19), (37) | 397.5 (26/7) | 1.312 | 8.750 | 3.750 | 0.410 |
| ACC477P3N4 | 1.312 | 8.500 | 3.750 | 0.310 | ||
| ACC500PN2 | 500 (19), (37) | 477 (18/1), (36/1) | 1.312 | 8.750 | 3.750 | 0.410 |
| ACC500P3N4 | 1.312 | 8.500 | 3.750 | 0.310 | ||
| ACC550PN2 | 550 (61) 556.5 (19), (37) |
477 (26/7) | 1.312 | 8.750 | 3.750 | 0.410 |
| ACC556P3N4 | 1.312 | 8.500 | 3.750 | 0.310 | ||
| ACC600PN2 | 600 (61) | 556.5 (18/1), (36/1) | 1.500 | 8.750 | 4.000 | 0.500 |
| ACC600P3N4 | 1.500 | 9.250 | 4.000 | 0.410 | ||
| ACC636PN2 | 636 (37), (61) 650 (61) |
556.5 (26/7) 605 (36/1) 636 (18/1), (36/1) |
1.500 | 8.750 | 4.000 | 0.500 |
| ACC650P3N4 | 1.500 | 9.250 | 4.000 | 0.410 | ||
| ACC700PN2 | 700 (61), (91) | 605 (26/7), (54/7) 666.6 (36/1) |
1.500 | 8.750 | 4.000 | 0.500 |
| ACC700P3N4 | 1.500 | 9.250 | 4.000 | 0.410 | ||
| ACC636RPN2 | - | 636 (26/7) 715.5 (54/7) |
1.500 | 8.750 | 4.000 | 0.500 |
| ACC715RP3N4 | 1.500 | 9.250 | 4.000 | 0.410 | ||
| ACC750PN2 | 750 (37), (61), (91) | 762 (20/7) 666 (54/7) |
1.500 | 8.750 | 4.000 | 0.500 |
| ACC700P3N4 | 1.500 | 9.250 | 4.000 | 0.410 | ||
| ACC800PN2 | 795 (37), (61) 800 (61) |
715.5 (54/7) | 1.843 | 10.875 | 5.000 | 0.750 |
| ACC800P3N4 | 1.843 | 10.500 | 5.000 | 0.555 | ||
| ACC800P4N4 | 1.843 | 11.125 | 5.000 | 0.500 | ||
| ACC795RP3N4 | - | 715.5 (26/7) 795 (36/1) |
1.843 | 10.500 | 5.000 | 0.555 |
| ACC795RP3N4 | - | 795 (45/7) | 1.843 | 10.500 | 5.000 | 0.555 |
| ACC874P3N4 | 874.5 (37), (61) 900 (61), (91) |
795 (26/7), (54/7) 874.5 (36/1) |
1.843 | 10.500 | 5.000 | 0.555 |
| ACC900P4N4 | 1.843 | 11.125 | 5.000 | 0.500 | ||
| ACC954P3N4 | 954 ( (37), (61) | 900 (45/7) | 1.843 | 10.500 | 5.000 | 0.555 |
| ACC954P4N4 | 1.843 | 11.125 | 5.000 | 0.500 | ||
| ACC1000P3N4 | 1000 (61), (91) 1033.5 (37), (61) |
900 (54/7) 954 (45/7) |
1.843 | 10.500 | 5.000 | 0.555 |
| ACC1033P4N4 | 1.843 | 11.125 | 5.000 | 0.500 | ||
| ACC1113P4N4 | 1113 (61) | 954 (54/7) 1033.5 (45/7) |
2.125 | 12.125 | 6.000 | 0.500 |
| ACC1192P4N4 | 1192.5 (61) | 1033.5 (54/7) 1113 (45/7) |
2.125 | 12.125 | 6.000 | 0.500 |
| ACC1272P4N4 | 1272 (61) | 1113 (18/1), (54/19) 1192.5 (45/7) |
2.375 | 12.375 | 6.000 | 0.750 |
| ACC1272RP4N4 | 1351.5 (61) | 1272 (45/7) | 2.375 | 12.375 | 6.000 | 0.750 |
| ACC1431P4N4 | 1431 (61) | 1272 (18/1), (45/7), (54/19) 1351.5(54/7) |
2.375 | 12.375 | 6.000 | 0.750 |
| ACC1534P4N4 | 1534.4 ACAR | 1351.5 (54/19) 1431 (45/7) |
2.375 | 12.375 | 6.000 | 0.750 |
| ACC1590P4N4 | 1590 (61) | 1431 (18/1), (54/19) 1510.5 (54/7) |
2.375 | 12.375 | 6.000 | 0.750 |
| ACC1700P4N4 | 1700 (127), (169) | 1510 (54/19) 1590 (45/7) |
2.375 | 12.375 | 6.000 | 0.750 |
| ACC1590RP4N4 | - | 1590 (18/1), (54/19) | 2.375 | 12.375 | 6.000 | 0.750 |
| ACC2000P4N4 | 2000 | - | 2.937 | 15.625 | 8.000 | 1.000 |
| ACC2156RP4N4 | - | 2156 (84/19) | 2.937 | 15.625 | 8.000 | 1.000 |
| ACCN2500P4N4 | 2500 (91), (127) | - | 2.937 | 15.625 | 8.000 | 1.000 |
| ACC3500P4N4 | 3500 (127) | - | 2.937 | 15.625 | 8.000 | 1.000 |
