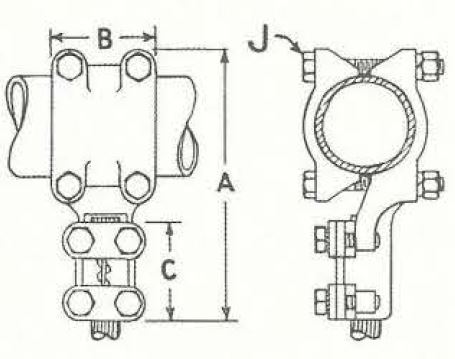

TEE CONNECTOR, TUBE TO CABLE
Notes
1. All cables sizes shown are stranded, 350 and above are kcmil sizes
2. Other sizes available on request
3. J= 1/2"
| Cat. No. | TAP CABLE SIZE1 | RUN | A | B | C | |
| Min. | Max. | I.P.S | In | In | In | |
| BBTB12C00 | 4 | 2/0 | 1/2 | 5 7/16 | 2 1/4 | 2 7/16 |
| BBTB12C350 | 2/0 | 350 | 1/2 | 5 13/16 | 2 1/4 | 2 13/16 |
| BBTB34C00 | 4 | 2/0 | 3/4 | 5 9/16 | 2 3/8 | 2 7/16 |
| BBTB34C350 | 2/0 | 350 | 3/4 | 5 15/16 | 2 3/8 | 2 13/16 |
| BBTB34C600 | 350 | 600 | 3/4 | 5 15/16 | 2 3/8 | 2 13/16 |
| BBTB1C00 | 4 | 2/0 | 1 | 5 5/8 | 2 1/2 | 2 7/16 |
| BBTB1C350 | 2/0 | 350 | 1 | 6 1/4 | 2 1/2 | 2 13/16 |
| BBTB1C600 | 350 | 600 | 1 | 6 1/4 | 2 1/2 | 2 13/16 |
| BBTB114C350 | 2/0 | 350 | 1 1/4 | 6 5/8 | 2 5/8 | 2 13/16 |
| BBTB114C600 | 350 | 600 | 1 1/4 | 6 5/8 | 2 5/8 | 2 13/16 |
| BBTB114C1000 | 600 | 1000 | 1 1/4 | 6 13/16 | 2 5/8 | 3 |
| BBTB112C350 | 2/0 | 350 | 1 1/2 | 6 13/16 | 2 3/4 | 2 13/16 |
| BBTB112C600 | 350 | 600 | 1 1/2 | 6 13/16 | 2 3/4 | 2 13/16 |
| BBTB112C1000 | 600 | 1000 | 1 1/2 | 7 | 2 3/4 | 3 |
| BBTB2C350 | 2/0 | 350 | 2 | 7 5/16 | 2 7/8 | 2 13/16 |
| BBTB2C600 | 350 | 600 | 2 | 7 5/16 | 2 7/8 | 2 13/16 |
| BBTB2C1000 | 600 | 1000 | 2 | 7 1/2 | 2 7/8 | 3 |
| BBTB212C350 | 2/0 | 350 | 2 1/2 | 7 13/16 | 3 | 2 13/16 |
| BBTB212C600 | 350 | 600 | 2 1/2 | 7 13/16 | 3 | 2 13/16 |
| BBTB212C1000 | 600 | 1000 | 2 1/2 | 8 | 3 | 3 |
| BBTB212C1500 | 1000 | 1500 | 2 1/2 | 8 3/16 | 3 | 3 3/16 |
| BBTB212C2000 | 1500 | 2000 | 2 1/2 | 8 3/16 | 3 | 2 13/16 |
| BBTB3C350 | 2/0 | 350 | 3 | 8 3/16 | 3 | 2 13/16 |
| BBTB3C600 | 350 | 600 | 3 | 8 3/16 | 3 | 2 13/16 |
| BBTB3C1000 | 600 | 1000 | 3 | 8 3/8 | 3 | 3 |
| BBTB3C1500 | 1000 | 1500 | 3 1/2 | 8 9/16 | 3 | 3 3/16 |
| BBTB3C2000 | 1500 | 2000 | 3 | 8 3/4 | 3 | 3 3/8 |
| BBTB312C600 | 350 | 600 | 3 | 8 11/16 | 3 1/4 | 2 13/16 |
| BBTB312C1000 | 600 | 1000 | 3 1/2 | 8 7/8 | 3 1/4 | 3 |
| BBTB312C1500 | 1000 | 1500 | 3 1/2 | 9 1/16 | 3 1/4 | 3 3/16 |
| BBTB312C2000 | 1500 | 2000 | 3 1/2 | 9 1/4 | 3 1/4 | 3 3/8 |
| BBTB4C600 | 350 | 600 | 4 | 9 3/16 | 3 1/2 | 2 13/16 |
| BBTB4C1000 | 600 | 1000 | 4 | 9 3/8 | 3 1/2 | 3 |
| BBTB4C1500 | 1000 | 1500 | 4 | 9 9/16 | 3 1/2 | 3 3/16 |
| BBTB4C2000 | 1500 | 2000 | 4 | 9 3/4 | 3 1/2 | 3 3/8 |
