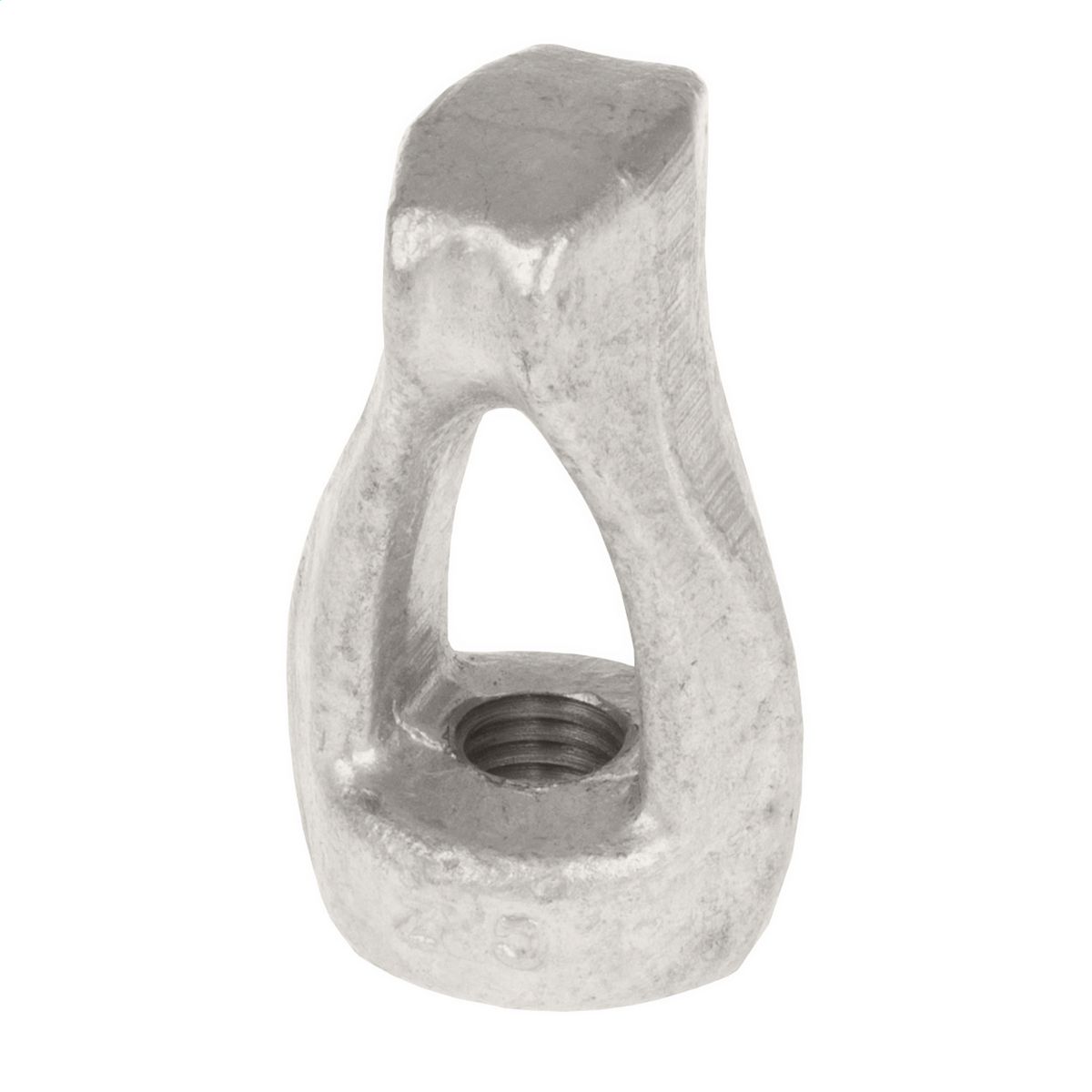

Forged Thimble Eyenuts

ANSI standard C135.5
Rated for 100% bolt strength
Material: HDG STEEL per ASTM A123/A153 CSA G164

Catalog Number	Tapped For bolt	Thimble Dia.	Max Str Size	Minimum Ultimate Tensile Strength	Approx. Ship Wt. per Each
Catalog Number	inch	inch	inch	lbs	lbs
THEN58	5/8"	1-1/2"	1-1/2	13550	0.78
THEN34	3/4"		1-1/2	20050	0.72
THEN01	1"		1-1/2	33500	1.8
THEN12	1/2"	1/2	1/2	7800	0.78
