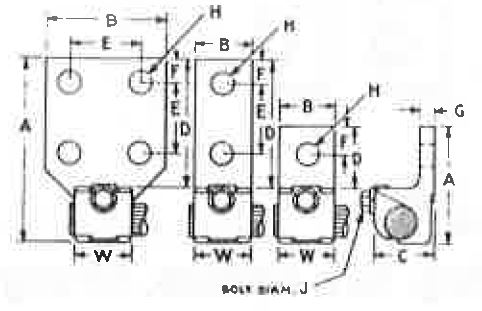

Notes
1. All cable sizes shown are stranded; 350 and above are kcmil sizes.
2. Holes in tongue.
3. Other sizes available on request.
4. E = 1 3/4"
| Cat. No. | CABLE SIZE1 | H.T.2 | A | B | C | D | F | G | H | J | W | |
| Min. | Max. | In | In | In | In | In | In | In | In | In | ||
| BB1TC6PN1 | #8 | #6 | 1 | 1 1/2 | 11/16 | 5/8 | 5/8 | 9/32 | 5/32 | 7/32 | 1/4 | 11/16 |
| BB1TC4PN1 | #6 | #4 | 1 | 1 9/16 | 3/4 | 5/8 | 11/16 | 5/16 | 5/32 | 9/32 | 1/4 | 3/4 |
| BB1TC1PN1 | #4 | #1 | 1 | 1 5/8 | 25/32 | 11/16 | 27/32 | 3/8 | 3/16 | 9/32 | 5/16 | 29/32 |
| BB1TC00PN1 | 1/0 | 2/0 | 1 | 1 15/16 | 29/32 | 7/8 | 1 | 15/32 | 7/32 | 13/32 | 5/16 | 31/32 |
| BB1TC0000PN1 | 2/0 | 4/0 | 1 | 2 1/4 | 1 1/16 | 1 | 1 3/16 | 9/16 | 1/4 | 9/16 | 5/16 | 1 3/16 |
| BB1TC0000PN2 | 2/0 | 4/0 | 2 | 4 5/16 | 1 1/16 | 1 | 3 1/4 | 5/8 | 1/4 | 9/16 | 5/16 | 1 3/16 |
| BB1TC350PN1 | 4/0 | 350 | 1 | 2 7/8 | 1 7/32 | 1 1/4 | 1 3/8 | 21/32 | 9/32 | 9/16 | 3/8 | 1 11/32 |
| BB1TC350PN2 | 4/0 | 350 | 2 | 4 17/32 | 1 7/32 | 1 1/4 | 3 9/32 | 5/8 | 9/32 | 9/16 | 3/8 | 1 11/32 |
| BB1TC350P3N4 | 4/0 | 350 | 4 | 4 17/32 | 3 | 1 1/4 | 3 9/32 | 5/8 | 9/32 | 9/16 | 3/8 | 1 11/32 |
| BB1TC500PN1 | 350 | 500 | 1 | 3 1/16 | 1 7/16 | 1 13/32 | 1 5/8 | 3/4 | 5/16 | 9/16 | 3/8 | 1 9/16 |
| BB1TC500PN2 | 350 | 500 | 2 | 4 3/4 | 1 7/16 | 1 13/32 | 3 5/16 | 5/8 | 5/16 | 9/16 | 3/8 | 1 9/16 |
| BB1TC500P3N4 | 350 | 500 | 4 | 4 3/4 | 3 | 1 13/32 | 3 5/16 | 5/8 | 5/16 | 9/16 | 3/8 | 1 9/16 |
| BB1TC750PN1 | 500 | 750 | 1 | 3 17/32 | 1 11/16 | 1 11/16 | 1 27/32 | 7/8 | 3/8 | 21/32 | 7/16 | 1 29/32 |
| BB1TC750PN2 | 500 | 750 | 2 | 5 1/32 | 1 11/16 | 1 11/16 | 3 11/32 | 5/8 | 3/8 | 9/16 | 7/16 | 1 29/32 |
| BB1TC750P3N4 | 500 | 750 | 4 | 5 1/32 | 3 | 1 11/16 | 3 11/32 | 5/8 | 3/8 | 9/16 | 7/16 | 1 29/32 |
| BB1TC1000PN1 | 750 | 1000 | 1 | 4 1/8 | 1 15/16 | 1 15/16 | 2 1/8 | 1 | 7/16 | 11/16 | 1/2 | 2 5/32 |
| BB1TC1000PN2 | 750 | 1000 | 2 | 5 3/8 | 1 15/16 | 1 15/16 | 3 3/8 | 5/8 | 7/16 | 9/16 | 1/2 | 2 5/32 |
| BB1TC1000P3N4 | 750 | 1000 | 4 | 5 3/8 | 3 | 1 15/16 | 3 3/8 | 5/8 | 7/16 | 9/16 | 1/2 | 2 5/32 |
