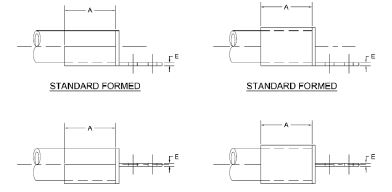

AWRBP CF Type AWBP CF Type
For center formed pad add suffix "CF"
P2 = 2 hole NEMA Pad
3N4 = 3" 4hole NEMA Pad
4N4 = 4" 4hole NEMA Pad
Other configurations available on request
Material: Aluminum Alloy
| ALUMINIUM CONNECTORS | ||||
| CATALOG NUMBER |
CATALOG NUMBER |
TUBE SIZE | DIMENSION (INCHES) | |
| A | E | |||
| AWRB1PN2 | AWB1PN2 | 1.000 | 1.750 | 0.375 |
| AWRB1P3N4 | AWB1P3N4 | 1.000 | 1.750 | 1.750 |
| AWRB114PN2 | AWB114PN2 | 1.250 | 1.750 | 1.750 |
| AWRB114P3N4 | AWB114P3N4 | 1.250 | 1.750 | 1.750 |
| AWRB112PN2 | AWB112PN2 | 1.500 | 1.750 | 0.500 |
| AWRB112P3N4 | AWB112P3N4 | 1.500 | 1.750 | 0.375 |
| AWRB2PN2 | AWB2PN2 | 2.000 | 1.750 | 0.500 |
| AWRB2P3N4 | AWB2P3N4 | 2.000 | 1.750 | 0.3750 |
| AWRB2P4N4 | AWB2P4N4 | 2.000 | 1.750 | 0.500 |
| AWRB212PN2 | AWB212PN2 | 2.500 | 3.750 | 0.625 |
| AWRB212P3N4 | AWB212P3N4 | 2.500 | 3.750 | 0.625 |
| AWRB212P4N4 | AWB212P4N4 | 2.500 | 3.750 | 0.500 |
| AWRB3PN2 | AWB3PN2 | 3.000 | 3.000 | 0.750 |
| AWRB3P3N4 | AWB3P3N4 | 3.000 | 3.000 | 0.625 |
| AWRB3P4N4 | AWB3P4N4 | 3.000 | 3.000 | 0.625 |
| AWRB312P3N4 | AWB312P3N4 | 3.500 | 3.250 | 0.625 |
| AWRB312P4N4 | AWB312P4N4 | 3.500 | 3.250 | 0.750 |
| AWRB4P3N4 | AWB4P3N4 | 4.000 | 3.000 | 0.625 |
| AWRB4P4N4 | AWB4P4N4 | 4.000 | 3.000 | 0.750 |
| AWRB5P3N4 | AWB5P3N4 | 5.000 | 4.000 | 1.000 |
| AWRB5P4N4 | AWB5P4N4 | 5.000 | 4.000 | 1.000 |
| AWRB6P4N4 | AWB6P4N4 | 6.000 | 5.000 | 1.000 |
