Aluminium Welded Vertical Bus Support to Bolt Circle

Category: Welded Connectors
Hits: 432



CATALOG

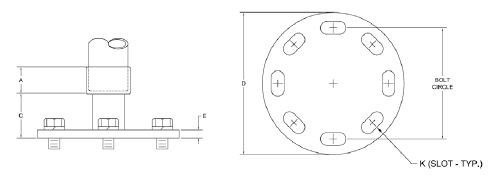

NUMBER 		 I.P.S. SIZE  DIMENSIONS (INCHES)
A C D E K
3” BOLT CIRCLE BASES
AWVBS34BC3 0.750 1.000 1.875 4.250 0.375 .563 x .750
AWVBS1BC3 1.000 1.000 1.875 4.250 0.375 .563 x .750
AWVBS54BC3 1.250 1.000 1.875 4.250 0.375 .563 x .750
AWVBS32BC3 1.500 1.250 2.125 4.250 0.375 .563 x .750
AWVBS2BC3 2.000 1.750 2.250 4.250 0.375 .563 x .750
AWVBS52BC3 2.500 2.000 2.500 4.250 0.375 .563 x .750
AWVBS3BC3 3.000 2.500 2.500 4.250 0.375 .563 x .750
AWVBS72BC3 3.500 2.500 2.750 4.250 0.375 .563 x .750
AWVBS4BC3 4.000 2.500 2.750 4.250 0.375 .563 x .750
5” BOLT CIRCLE BASES
AWVBS34BC5 0.750 1.000 1.875 6.250 0.500 .688 x .875
AWVBS1BC5 1.000 1.000 1.875 6.250 0.500 .688 x .875
AWVBS54BC5 1.250 1.000 1.875 6.250 0.500 .688 x .875
AWVBS32BC5 1.500 1.250 2.125 6.250 0.500 .688 x .875
AWVBS2BC5 2.000 1.750 2.250 6.250 0.500 .688 x .875
AWVBS52BC5 2.500 2.000 2.500 6.250 0.500 .688 x .875
AWVBS3BC5 3.000 2.500 2.500 6.250 0.500 .688 x .875
AWVBS72BC5 3.500 2.500 2.750 6.250 0.500 .688 x .875
AWVBS4BC5 4.000 2.500 2.750 6.250 0.500 .688 x .875
