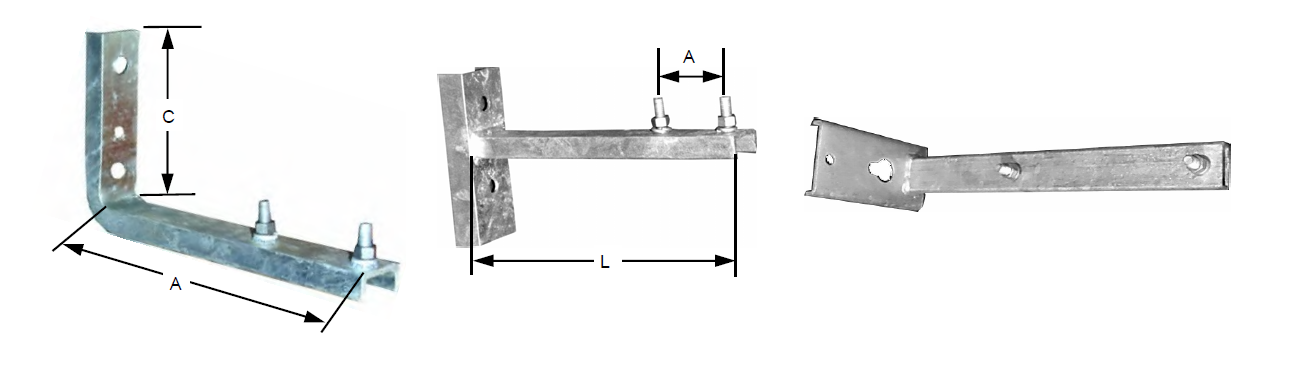

Cutout/Arrester Combination Brackets (Single Phase)

Search



                          CACBL                                            CACBT                                            CACB



CUTOUT - ARRESTER COMBINATION BRACKETS
Catalog No. A C Shipping Wt. (100 pcs) Std Pkg.
inch mm inch mm lbs kg
CACBL0608 6 152 8 222 300 136,08 20
CACBL83408 8-3/4 222 8 222 380 172,37 25
CACBL123408 12-3/4 324 8 222 450 204,12 10



CUTOUT - ARRESTER COMBINATION BRACKETS
Catalog No. L A Shipping Wt. (100 pcs) Std Pkg.
inch mm inch mm lbs kg
CACBT06specify 6 152 specify specify 300 136,08 5
CACBT1312314 13-1/2 343 3-1/4 83 600 272,16 6
CACBT18314 18 457 3-1/4 83 640 290,30 4



CUTOUT - ARRESTER COMBINATION BRACKETS
Catalog No. L A Shipping Wt. (100 pcs) Std Pkg.
inch mm inch mm lbs kg
CACB1910 19 483 10 254 360 163,29 5
CACB231213 23-1/2 597 13 343 420 190,51 5
