BB1T0CP | BB1Q0CP |

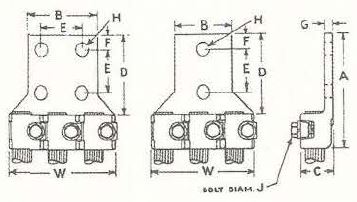

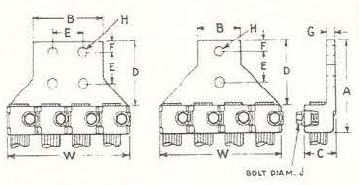

TERMINAL LUGS, THREE CABLES, STRAIGHT TERMINAL LUGS, FOUR CABLES, STRAIGHT
Notes:
1.All cable sizes shown are stranded; 350 and above are kcmil sizes.
2. Holes in tongue
3.Other sizes available on request
4.E= 1 3/4"
CABLE SIZE1 | A | B | C | D | F | G | H | J | W | |||
Cat. No. | Min. | Max. | H.T.2 | In | In | In | In | In | In | In | In | In |
BB1T0C0000PN2 | 2/0 | 4/0 | 2 | 4 13/16 | 1 7/8 | 1 | 3 1/4 | 5/8 | 1/4 | 9/16 | 5/16 | 3 1/2 |
BB1T0C0000P3N4 | 2/0 | 4/0 | 4 | 4 13/16 | 3 | 1 | 3 1/4 | 5/8 | 1/4 | 9/16 | 5/16 | 3 1/2 |
BB1T0C350PN2 | 4/0 | 350 | 2 | 4 5/8 | 2 5/16 | 1 13/32 | 3 9/32 | 5/8 | 5/16 | 9/16 | 3/8 | 4 |
BB1T0C350P3N4 | 4/0 | 350 | 4 | 4 5/8 | 3 | 1 13/32 | 3 9/32 | 5/8 | 5/16 | 9/16 | 3/8 | 4 |
BB1T0C500PN2 | 350 | 500 | 2 | 4 3/4 | 2 1/2 | 1 15/32 | 3 5/16 | 5/8 | 3/8 | 9/16 | 3/8 | 4 9/16 |
BB1T0C500P3N4 | 350 | 500 | 4 | 4 3/4 | 3 | 1 15/32 | 3 5/16 | 5/8 | 3/8 | 9/16 | 3/8 | 4 9/16 |
BB1T0C750PN2 | 500 | 750 | 2 | 5 1/4 | 3 | 1 3/4 | 3 11/32 | 5/8 | 7/16 | 9/16 | 7/16 | 5 1/4 |
BB1T0C750P3N4 | 500 | 750 | 4 | 5 1/4 | 3 | 1 3/4 | 3 11/32 | 5/8 | 7/16 | 9/16 | 7/16 | 5 1/4 |
BB1T0C1000PN2 | 750 | 1000 | 2 | 5 5/8 | 3 7/32 | 2 | 3 3/8 | 5/8 | 1/2 | 9/16 | 1/2 | 6 1/8 |
BB1T0C1000P3N4 | 750 | 1000 | 4 | 5 5/8 | 3 7/32 | 2 | 3 3/8 | 5/8 | 1/2 | 9/16 | 1/2 | 6 1/8 |
BB1Q0C0000PN2 | 2/0 | 4/0 | 2 | 4 7/16 | 2 | 1 | 3 1/4 | 5/8 | 1/4 | 9/16 | 5/16 | 4 7/16 |
BB1Q0C0000P3N4 | 2/0 | 4/0 | 4 | 4 7/16 | 3 | 1 | 3 1/4 | 5/8 | 1/4 | 9/16 | 5/16 | 4 7/16 |
BB1Q0C350PN2 | 4/0 | 350 | 2 | 4 11/16 | 2 | 1 1/4 | 3 3/8 | 5/8 | 5/16 | 9/16 | 3/8 | 5 1/4 |
BB1Q0C350P3N4 | 4/0 | 350 | 4 | 4 11/16 | 3 | 1 1/4 | 3 3/8 | 5/8 | 5/16 | 9/16 | 3/8 | 5 1/4 |
BB1Q0C500PN2 | 350 | 500 | 2 | 5 1/16 | 2 1/2 | 1 7/16 | 3 1/2 | 5/8 | 3/8 | 9/16 | 3/8 | 6 |
BB1Q0C500P4N4 | 350 | 500 | 4 | 5 1/16 | 4 | 1 7/16 | 3 1/2 | 5/8 | 3/8 | 9/16 | 3/8 | 6 |
BB1Q0C750PN2 | 500 | 750 | 2 | 5 1/4 | 4 | 1 3/4 | 3 1/2 | 5/8 | 7/16 | 9/16 | 7/16 | 6 13/16 |
BB1Q0C750P4N4 | 500 | 750 | 4 | 5 1/4 | 4 | 1 3/4 | 3 1/2 | 5/8 | 7/16 | 9/16 | 7/16 | 6 13/16 |
BB1Q0C1000PN2 | 750 | 1000 | 2 | 5 7/8 | 4 1/2 | 1 15/16 | 4 1/8 | 5/8 | 1/2 | 9/16 | 1/2 | 8 |
BB1Q0C1000P4N4 | 750 | 1000 | 4 | 5 7/8 | 4 1/2 | 1 15/16 | 4 1/8 | 7/8 | 1/2 | 9/16 | 1/2 | 8 |
