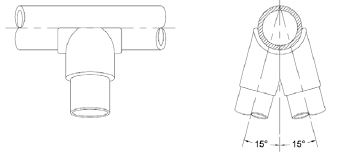

For angle of 15°.
For angles not listed substitute the value after "T"
| ALUMINIUM CONNECTORS | ||
| CATALOG NUMBER |
CONDUCTOR SIZE (IPS) | |
| MAIN | TAP | |
| AWDMAT15B54B1 | 1.250 | 1.000 |
| AWDMAT15B32B1 | 1.500 | 1.000 |
| AWDMAT15B32B54 | 1.500 | 1.250 |
| AWDMAT15B2B1 | 2.000 | 1.000 |
| AWDMAT15B2B54 | 2.000 | 1.250 |
| AWDMAT15B2B32 | 2.000 | 1.500 |
| AWDMAT15B2B2 | 2.000 | 2.000 |
| AWDMAT15B52B54 | 2.500 | 1.250 |
| AWDMAT15B52B32 | 2.500 | 1.500 |
| AWDMAT15B52B2 | 2.500 | 2.000 |
| AWDMAT15B52B52 | 2.500 | 2.500 |
| AWDMAT15B3B54 | 3.000 | 1.250 |
| AWDMAT15B3B32 | 3.000 | 1.500 |
| AWDMAT15B3B2 | 3.000 | 2.000 |
| AWDMAT15B3B52 | 3.000 | 2.500 |
| AWDMAT15B3B3 | 3.000 | 3.000 |
| AWDMAT15B72B54 | 3.500 | 1.250 |
| AWDMAT15B72B32 | 3.500 | 1.500 |
| AWDMAT15B72B2 | 3.500 | 2.000 |
| AWDMAT15B72B52 | 3.500 | 2.500 |
| AWDMAT15B4B32 | 4.000 | 1.500 |
| AWDMAT15B4B2 | 4.000 | 2.000 |
| AWDMAT15B4B52 | 4.000 | 2.500 |
| AWDMAT15B4B3 | 4.000 | 3.000 |
| AWDMAT15B5B2 | 5.000 | 2.000 |
| AWDMAT15B5B52 | 5.000 | 2.500 |
| AWDMAT15B5B3 | 5.000 | 3.000 |
| AWDMAT15B6B3 | 6.000 | 3.000 |
| AWDMAT15B6B4 | 6.000 | 4.000 |
