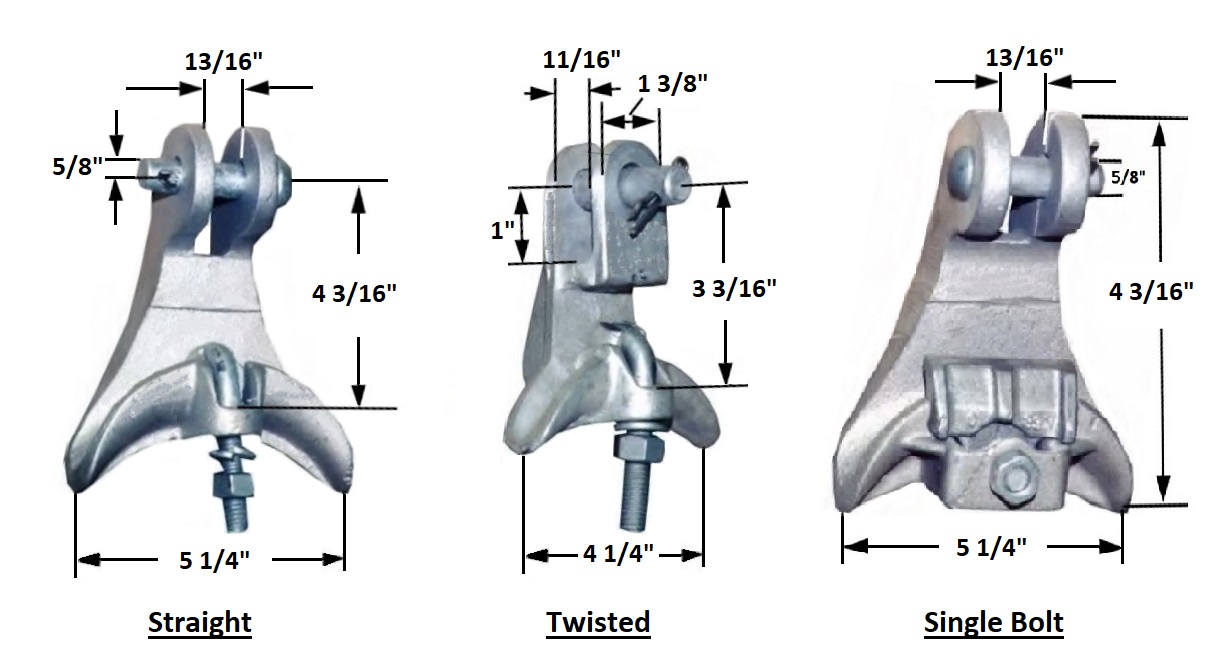

| ANGLE CLAMP STRAIGHT | ||||||||
|
Catalog No.
|
Cable size
|
RTS(LBS)
|
Clamping Force (LBS)
|
Angle Range
|
Shipping Wt. (100 pcs) |
Std Pkg.
|
||
| lbs | kg | |||||||
| AC1125 | 0.300" to 1.125" | 12000 | 700 | 30-120° | 200 | 90.72 | 20 | |
- High strength aluminum alloy
- Angle clamps attached to the eye of suspension insulator for use on rural lines or with eyebolt to carry neutral wires
| ANGLE CLAMP TWISTED | ||||||||
| Catalog No. | Cable size | RTS(LBS) | Clamping Force (LBS) | Angle Range | Shipping Wt. Lbs (100 pcs) | Std. Pkg | ||
| AC1125 | 0.200" to 700" | 7000 | 700 | 30-120° | 128 | 25 | ||
- High strength aluminum alloy
- Angle clamps attached to the eye of suspension insulator for use on rural lines or with eyebolt to carry neutral wires
| SINGLE BOLT ANGLE CLAMP | ||||||||
| Catalog No. | Cable size | RTS(LBS) | Clamping Force (LBS) | Angle Range | Shipping Wt.lbs (100 pcs) | Std Pkg. | ||
| AC1125HD | 0.300" to 1.125" | 12500 | 700 | 30-120° | 250 | 10 | ||
- High strength aluminum alloy
- High strength bolt with permanently attached nut for high torque
- Can be used with hot stick
- Recommended for use with ACSR and all aluminum conductors
- Category: Cable Side
- Hits: 544
LPICG1125 LPICG1150 LPICG875
- Body and keeper are made from high aluminum alloy
- Bolts of high tensile steel
- Design for use with horizontal or vertical post insulators
- Keepers are reversible to fit different size of conductor
- All clamps supplied with anti-static stainless steel spring
- LPICG875 is single bolt - can be used with hot line sticks
|
Catalog No.
|
Conductor Range | Mo. Of Bolts |
| inch | inch | |
| LPICG635 | 0.220 to 0.635 | 2 |
| LPICG1150 | 0.5 to 1.06 | 2 |
| LPICG875 | 0.300 to 0.875 | 1 |
| LPICG1125 | 0.375 to 1.125 | 1 |
- Category: Cable Side
- Hits: 547
- High strength aluminum body
- Captured steel U bolts, steel cotter bolts, S.S. Cotter pin
- Wave seat
- Pulling and lifting eye
- Provision for jumper stud
- Add "D" for drilled for stud
|
Catalog No.
|
Range | |
| Min | Max | |
| inch | inch | |
| DESLC060 | 0.25 | 0.6 |
| DESLC094 | 0.5 | 0.9375 |
- Category: Cable Side
- Hits: 424
Aluminum
Color: Replace "X" with W (White) R (Red) B (Blue)
| Catalog No. | Wall Thickness Inch | Shipping Wt. Lbs (100 Pcs) | Std. Pkg. |
| MPDX | 0.19 | 15 | 100 |
Plastic (UV Stabilized PE)
Color: Replace "X" with W (White) R (Red) B (Blue)
| Catalog No. | Wall Thickness Inch | Shipping Wt. Lbs (100 Pcs) | Std. Pkg. |
| PPDX | 0.1 | 15 | 100 |
For Slotted Option (Installed using 1/2" banding) add Suffix "S"
