Guying
- Category: Guying
- Hits: 329

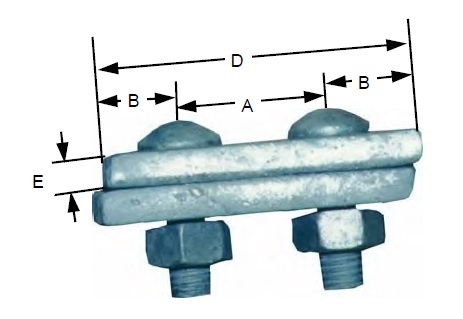

| Catalog No. | A | B | Hole Dia. | D | E | Plate Width | Ultimate Strength (Single Plate) |
Yield Strength (Single Plate) |
| inch | inch | inch | inch | inch | inch | lbs | lbs | |
| CSAP23163132 | 2-3/16 | 31/32 | 13/16 | 4-3/4 | 3/8 | 1-3/4 | 27000 | 19000 |
| CSAP5142716 | 5-1/4 | 2-7/16 | 1-5/16 | 10-1/8 | 3/4 | 4 | 83000 | 55000 |
- Category: Guying
- Hits: 322
| Catalog No. | Rod Dia. | A | B | C | D | E | Ultimate Strength |
| SLP58578 | 5/8 | 5-7/8 | 1-3/8 | 1-5/8 | 1-3/4 | 1/2 | 25000 |
| SLP34618 | 3/4 | 6-1/8 | 1-3/8 | 1-7/8 | 1-3/4 | 5/8 | 35000 |
| SLP7807 | 7/8 | 7 | 1-1/2 | 2-3/8 | 2 | 5/8 | 50000 |
| SLP0108 | 1 | 8 | 1-3/4 | 3 | 2-1/2 | 5/8 | 65000 |
| SLP114812 | 1-1/4 | 8-1/2 | 2 | 3-1/2 | 3 | 5/8 | 100000 |
- Category: Guying
- Hits: 316
| Catalog Number | Strand Size | Approx. Ship Wt. per Each |
| inch | lbs | |
| CWRD14 | 1/4" | 0.13 |
| CWRD516 | 5/16" | 0.14 |
| CWRD38 | 3/8" | 0.23 |
| CWRD12 | 1/2" | 0.50 |
| CWRD58 | 5/8" | 1.11 |
- Category: Guying
- Hits: 341
HWPG134 HWPG02112
| Catalog Number | Type | Steel Size | Length | Mounting Holes | Approx. Ship Wt. per Each |
| inch | inch | inch | lbs | ||
| HWPG134 | 1-Bolt Standard Hook | 3/8" x 1-3/4" | 4" | 11/16" | 0.85 |
| HWPG112 | 1-Bolt Storm Hook | 1/4" x 1-1/2" | 0.79 | ||
| HWPG02112 | 2-Bolt Storm Hook | 7' | 9/16" Top & 13/16" Bottom | 1.08 |
- Category: Guying
- Hits: 347
GHF345858 GHF345834
| Catalog No. | Upper Hole Dia. | Lower Hole Dia. | Max Strand Dia. | Thimble Dia. | Pin Dia. | Shipping Wt (100 pcs) | Std Pkg. | ||||||
| inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | lbs | kg | ||
| GHF345858 | 3/4 | 19 | 5/8 | 16 | 1/2 | 13 | 1-3/8 | 35 | 5/8 | 16 | 200 | 90.72 | 25 |
| GHF345834 | 3/4 | 19 | 5/8 | 16 | 1/2 | 13 | 1-3/8 | 35 | 3/4 | 19 | 200 | 90.72 | 25 |
| GHF010178 | 1 | 25 | 1 | 25 | - | - | - | - | 7/8 | 22 | 200 | 90.72 | 25 |
| Catalog No. | Minimum Ultimate Tensile Strength (lbs) | Clevis Pin Hole | Mounting Hole Dia. | Lower Hole Dia. | Base Width | Overall Length | Width Across Hooks | Approx. Ship Wt. Per Each (lbs) |
| GHF11161116 | 12,500 | 11/16" | 11/16" | 11/16" | 2-1/2" | 5" | 3-5/8" | 1.80 |
| GHF11161316 | 16,000 | 13/16" | 1.78 | |||||
| GHF11161316 | 16,000 | 1.74 | ||||||
| GHF13161316 | 21,000 | 13/16" | 1.76 | |||||
| GHF13161316 | 21,000 | 1.72 | ||||||
| GHF13161516 | 21,000 | 13/16' | 15/16" | 15/16" | 4-3/16" | 6-9/16" | N/A | 3.67 |
